Hip Roof Style
![](images/hipcapcopper2_small.jpg) |
|
![](images/hipcapcopper3_small.jpg) |
|
![](images/hipcapcopper7_small.jpg) |
|
![](images/hipcapcopper4_small.jpg) |
|
![](images/hipcapcopper5_small.jpg) |
|
![](images/hipcapcopper9_small.jpg) |
|
Click the pics
for a
larger image |
|
![](images/hipcapcopper8_small.jpg) |
|
|
|
|
|
9/16" Square Spark Arrestor mesh
Stainless Steel Hip Roof
Copper Hip & Ridge Roof
A ridge roof does not come to a "point" as the hip
style does. A ridge is the horizontal line formed by the juncture of two
sloping planes.
![Top Mounted Hip Ridge Copper Chimney Cap](http://www.copperchimneycaps.com/images/topmounthipridgeroofcopperchimneycap3thumb.jpg) |
![Large Copper Chimney Cap](http://www.copperchimneycaps.com/images/topmounthipridgeroofcopperchimneycap4thumb.jpg) |

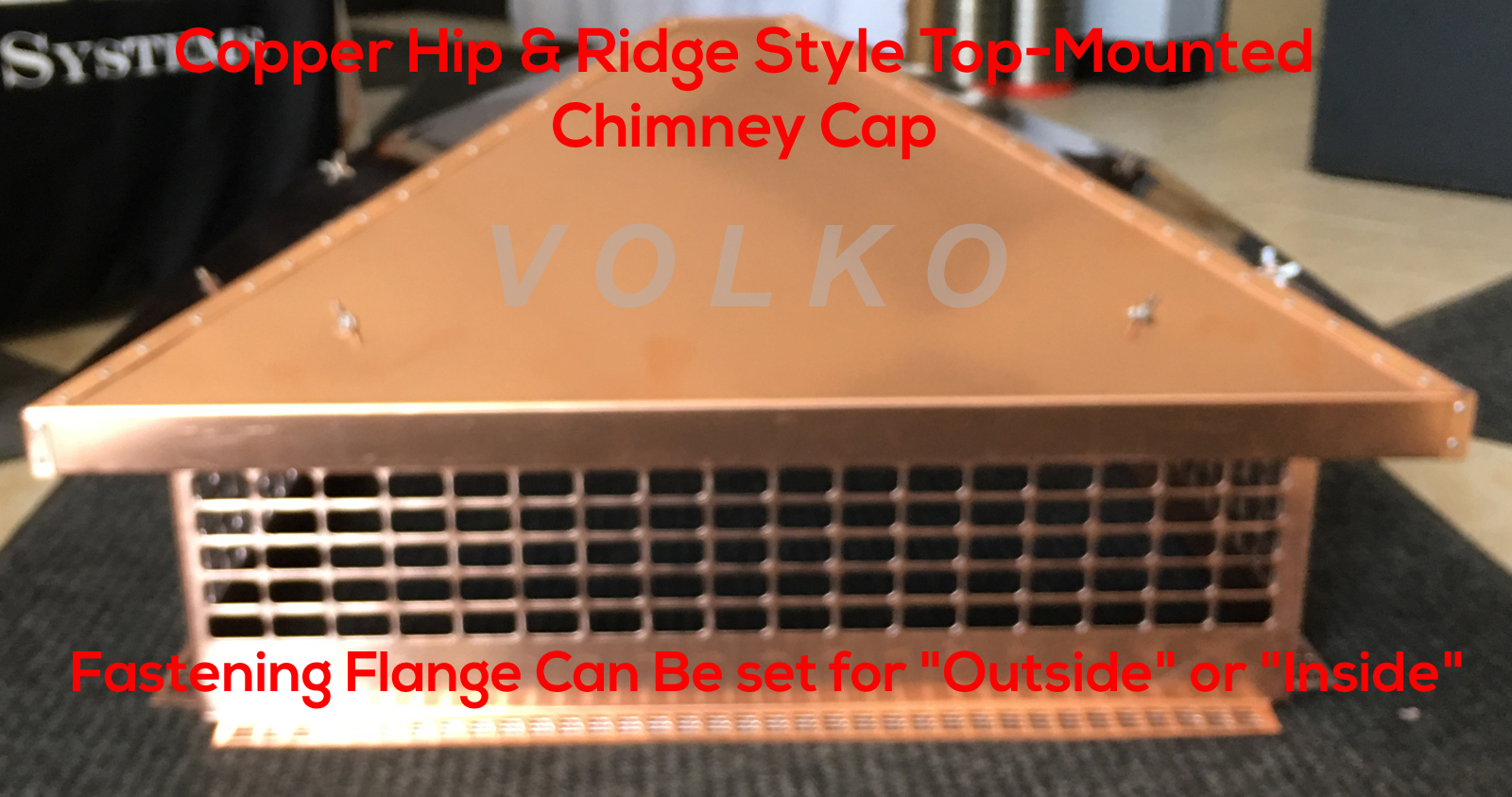

We can do all of our Hip - Ridge Chimney Caps as "Top
Mounts" Similar to our
Knock Down Caps |
We can do all of our Hip - Ridge Chimney Caps as "Top
Mounts" Similar to our
Knock Down Caps |
![](images/coppermesh3.jpg) |

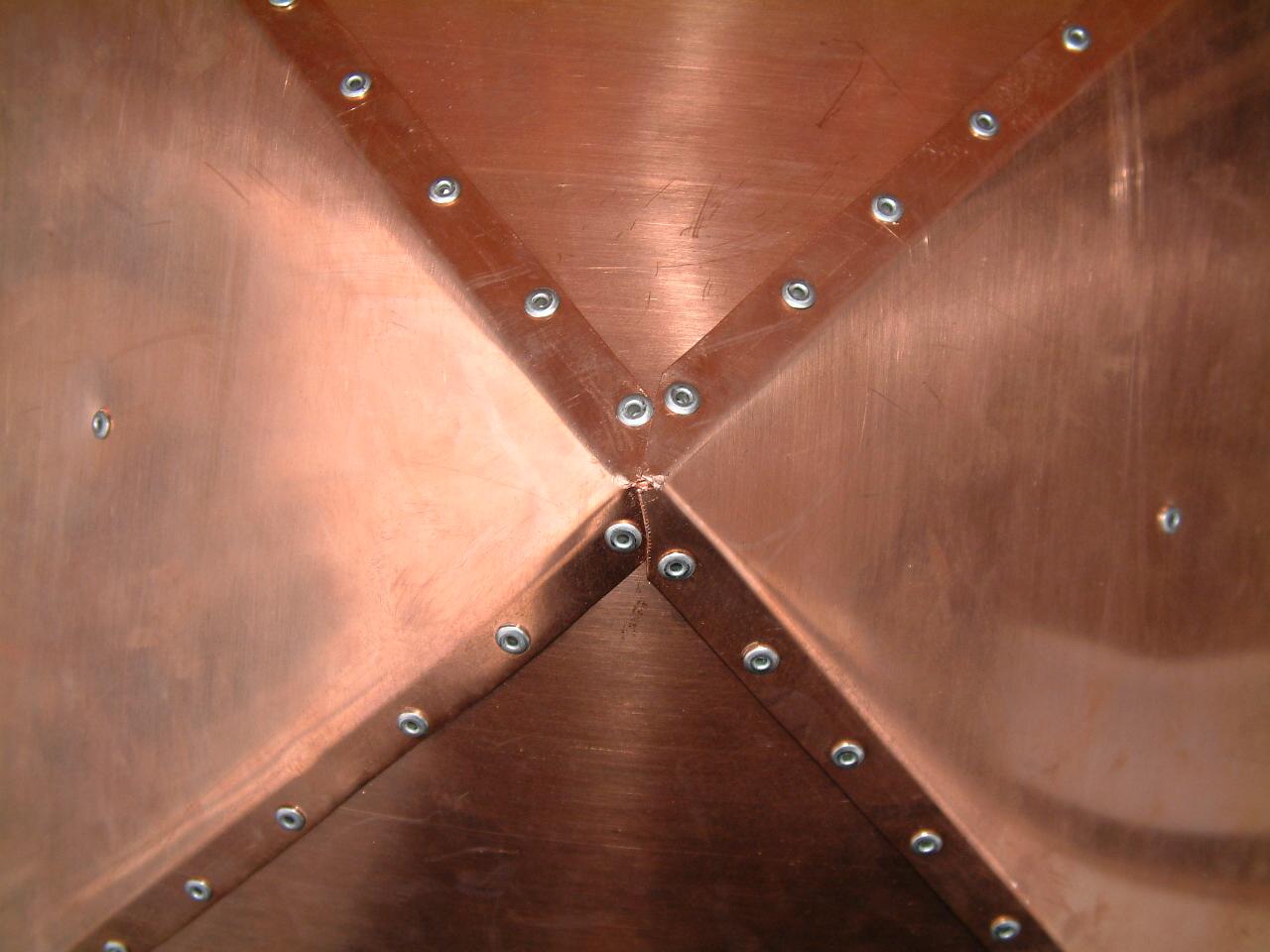

Made of 100% "half hard"
16 oz Structural
Copper & Riveted
Compare that to other caps that are
copper coated stainless steel
9/16" square spark arrestor mesh
or
3/4" ovalized standard mesh
PROUDLY MADE IN THE USA!! (NEW YORK TO
BE EXACT) |
******************************************************************
Single & double flue
Bolt - On
Copper Chimney Caps
Single flue stock sizes include....
CAP SIZE |
WILL FIT THESE FLUE SIZES |
9"x9" |
6 1/2"x6 1/2" to 9"x9" |
9"x13" |
6 1/2"x11" to 9"x131/2" |
9"x17" |
6 1/2"x16" to 9"x19" |
13"x13" |
11"x11" to 14"x14" |
13"x17" |
11"x16" to 14"x18 1/2" |
17"x17" |
16"x16" to 18 1/2"x18 1/2" |
Single flue stock sizes....
CAP SIZE |
WILL FIT THESE FLUE SIZES |
9"x24" |
One 8"x8" and One 8"x13" |
9"x28" |
Two 8"x13" |
13"x28" |
Two 13"x13" |
|
